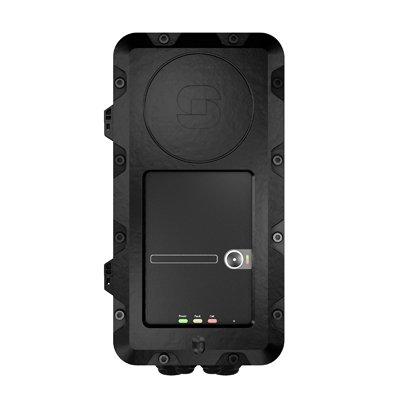

Zenitel EAPFX-1-V2 Exigo Industrial Ex Access Panel - V2
Technical Specification
Features:
- Make: Zenitel
- Model code: EAPFX-1-V2
- Network type: IP
- Power output: PNOM ≤ 3 W (idle) PMAX = 8 W
- Voltage: 24-48 VDC
Additional info:
Network access panel for explosive atmospheres Ex mb ib e IIC T4 Gb DSP for acoustic signal processing IP networking and power over Flowire technology One programmable button with individual label and status indicators Optional button protection covers Indicators for power, call and fault For single or dual systems (A and B systems)
Read more| Make | Zenitel |
|---|---|
| Manufacturer | Zenitel |
| Category | Navigation, communication and electronics>Public address and general alarm systems (PA/GA) |
| Model code | EAPFX-1-V2 |
| Network type | IP |
| Power output | PNOM ≤ 3 W (idle) PMAX = 8 W |
| Voltage | 24-48 VDC |
| Operating temperature | -20 ~ +55 °C |
| Protection | IP66 |
| Additional info |
|
| Download PDF version Download PDF version | |
