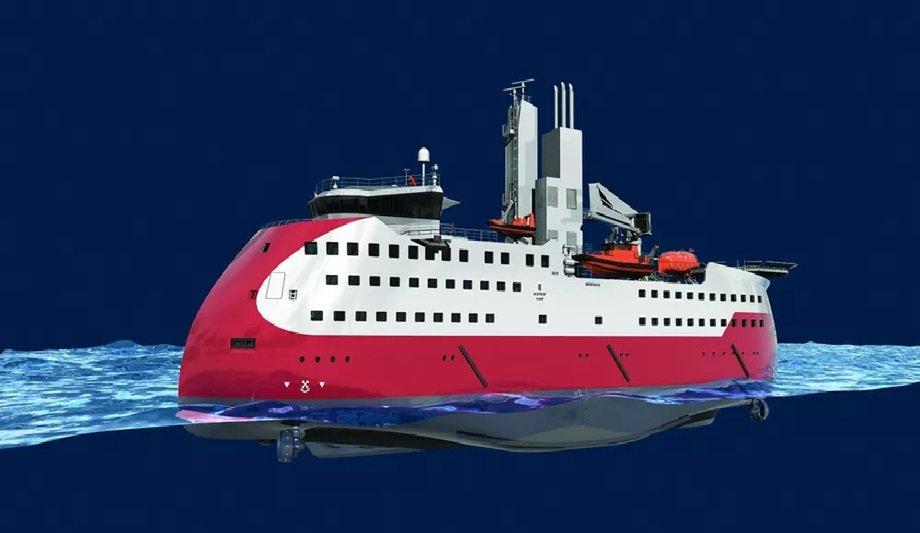

The TWIN X-STERN design is distinguished by its dual stern configuration, equipped with main propellers at each end.
This unique setup enhances manoeuvrability and motion, therefore having improved fuel efficiency - a critical factor in the drive towards more sustainable and efficient maritime operations.
Olympic Boreas sea trial
The recent sea trials of the Olympic Boreas marked the first real-scale, live environment test of the TWIN X-STERN 's unique characteristics, confirming its anticipated superior properties.
Versatility across vessel operations and size
The ten TWIN X-STERN new builds currently under construction are exclusively designed as Construction Service Operation Vessels (CSOVs) for the offshore energy industry.
However, the TWIN X-STERN's functionality extends beyond these specific operations. The principles and benefits behind the TWIN X-STERN, such as exceptional manoeuvrability, agility, and flexibility, apply to a variety of vessel types and sizes.TWIN X-STERN vessels benefits
Its benefits are evident across a broad spectrum of vessel lengths, from the 69m long SOV ULSTEIN SX234
All contracted TWIN X-STERN vessels to date range from 80 to 90 metres in length. However, the TWIN X-STERN solution is not confined by length.
Its benefits are evident across a broad spectrum of vessel lengths, from the 69m long Service Operation Vessel (SOV) ULSTEIN SX234 to the 170m long Cable Laying Vessel (CLV) ULSTEIN SX225.
Expanding operational scope
Ulstein anticipates that subsea operations and cable laying will be the next sectors to reap the benefits of these versatile vessels. The TWIN X-STERN concept originated within the walk-to-work market, where its first application was identified, and the challenges it solves were recognised.
For walk-to-work operations, the ability to transit forward or backward offers significant time efficiency. The TWIN X-STERN also enhances the ability to operate with the stern or bow facing the weather, eliminating the need for the vessel to reorient if sea state conditions change. This increases the operational window, a feature that is particularly important for other energy vessels, such as subsea and cable-laying vessels.
Safer and more effective operations
The TWIN X-STERN's seakeeping performance will be instrumental in future effective subsea operations
Cable-laying vessels, which spend a significant amount of time at sea, have limited flexibility to adjust their heading toward the weather as the final position of the cable determines the heading.
The TWIN X-STERN's seakeeping performance will be instrumental in future subsea operations, enabling safer and more effective operations. In all three segments, manoeuvrability and workability are key to the vessel’s competitiveness and operational efficiency.
Introducing the TWIN X-STERN to new market segments
The original first sketch of the ULSTEIN TWIN X-STERN is in the middle, surrounded by recent applications—a perfect example of incremental innovation.
Flexible layout for enhanced cargo capacity
The size of the deck area is a critical factor in determining the amount of cargo that cable-laying, pipe-laying, and subsea vessels can carry on deck. In such vessels, a rounded stern might pose a limitation.
However, it is possible to compromise on the shape of the stern above the waterline and retain the squared shape of the deck to maximize cargo capacity.
Global construction and operations
Six of the CSOV TWIN X-STERN vessels are set to be constructed at Ulstein Verft, with an additional four being built at an external yard. These vessels, designed to endure harsh sea conditions, are the brainchild of Ulstein Design & Solutions AS, a company acclaimed for its innovative and resilient vessel designs.
The TWIN X-STERN is engineered for all seas. While the initial units are taking shape in Europe, Ulstein's ship designs extend to the Asian market, where Ulstein Design & Solutions has facilitated the construction of a multitude of vessels.
