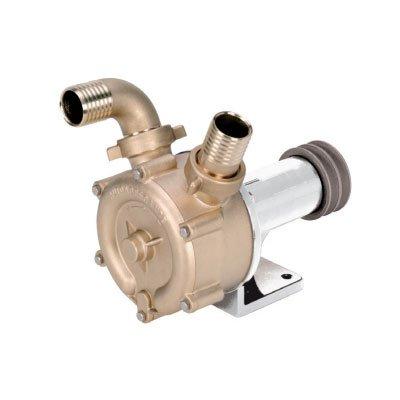

C.E.M. Elettromeccanica SPECIAL 020 Bidirectional Self-Priming Pump

Technical Specification

Features:

Make: C.E.M. Elettromeccanica
Model code: SPECIAL 020
Application: Bilge
Capacity or flow rate?: 0 ~ 1.8 m³/h
Delivery head or total head: 15 m

Additional info:

Bidirectional self-priming pumps with side liquid ring Widely used in the nautical sector to empty bilges, for fire-fighting equipment, washing of chains and transfer of liquids such as: fresh water, sea water, diesel-oil etc. Available with pulley or bare shaft

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	C.E.M. Elettromeccanica
Manufacturer	C.E.M. Elettromeccanica Srl
Category	Ships' equipment and fittings>Pumps (auxiliary)
Model code	SPECIAL 020
Application	Bilge
Capacity or flow rate?	0 ~ 1.8 m³/h
Delivery head or total head	15 m
Fluid temperature	0 ~ 70 °C
Speed	2800 RPM
Weight	2 Kg
Additional info	Bidirectional self-priming pumps with side liquid ring Widely used in the nautical sector to empty bilges, for fire-fighting equipment, washing of chains and transfer of liquids such as: fresh water, sea water, diesel-oil etc. Available with pulley or bare shaft
