AC Antennas 4GMultiband omnidirectional multiband antenna
Technical Specification
- Make: AC Antennas
- Model code: 4GMultiband
- Network: Cellular
- Operating Frequency: A: 790-806 B: 806-960 C: 1710-2500 D: 2500-2690 MHz
- Antenna Gain: 0 / 2.15 / 3 dBi

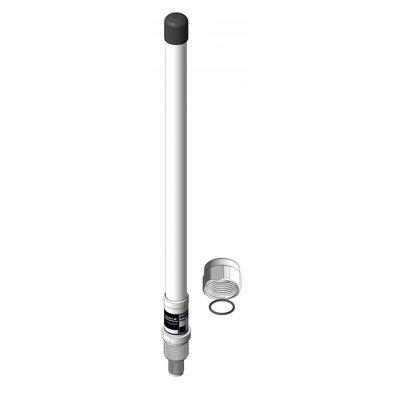

4GMultiband is an omnidirectional multiband antenna covering the cellular phone network bands simultaneously with data transmission, thus improving the communication performance for e.g. 3G, 4G, CDMA, UMTS, DECT, WLAN, GSM850/900/1800/1900, Bluetooth and EDGE. The swivel nut N239F is included for installation on ISO 228/1-G1 mounts. Radiating elements are made of brass. The antenna is manufactured using crimping technology giving the antenna a 4-5 times stronger build-up. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on Sea and Land.
Read moreMake | AC Antennas |
---|---|
Manufacturer | AC Antennas |
Category | Navigation, communication and electronics>Satellite TV/Antenna systems |
Model code | 4GMultiband |
Network | Cellular |
Operating Frequency | A: 790-806 B: 806-960 C: 1710-2500 D: 2500-2690 MHz |
Antenna Gain | 0 / 2.15 / 3 dBi |
Weight | 0.30 Kg |
Protection | IP68 |
Additional info |
4GMultiband is an omnidirectional multiband antenna covering the cellular phone network bands simultaneously with data transmission, thus improving the communication performance for e.g. 3G, 4G, CDMA, UMTS, DECT, WLAN, GSM850/900/1800/1900, Bluetooth and EDGE. The swivel nut N239F is included for installation on ISO 228/1-G1 mounts. Radiating elements are made of brass. The antenna is manufactured using crimping technology giving the antenna a 4-5 times stronger build-up. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on Sea and Land. |
